  • SZL型燃煤组装水管蒸汽/热水锅炉SZL coal-fired assembly water pipe steam/hot water boiler
名称:SZL型燃煤组装水管蒸汽/热水锅炉SZL coal-fired assembly water pipe steam/hot water boiler
详细介绍

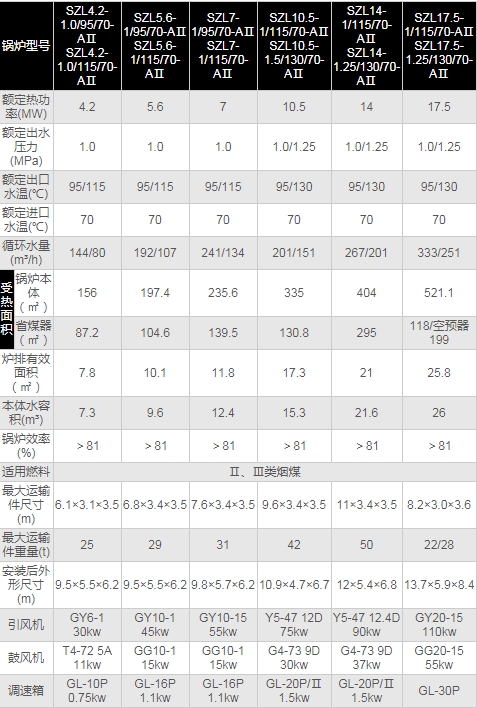

  产品范围

  额定热功率:4.2-29MW,额定出水压力:0.7-1.25MPa

  额定蒸发量:6-25t/h,额定出水压力:1.0-2.5MPa



  SZL型系列组装水管热水锅炉是双锅筒水管链条炉排锅炉。锅炉本体有沿锅炉中心纵向布置的上、下两只锅筒,上锅筒前部与两侧水冷壁管组成炉膛辐射受热面,上锅筒后部与下锅筒之间的管束组成对流受热面。省煤器布置在锅炉后部,燃烧生成的高温烟气在炉膛被吸去一部分热量后,经冷却室进入对流受热面传热再经省煤器、除尘器由引风机将烟气送至烟囱排入大气。

  结构紧凑、占地面积小,锅炉房单层布置,基建投资省;

  组装程度高,安装周期短,安装费用少;

  受热面布置充分、合理,锅炉升温、升压快,出力足,热效率高;

  炉排分风仓进仓,各风仓风量独立可调,炉排无级调速,适应煤种广,燃烧充分;

  电控柜配备齐全的自动控制和监测仪标,自动化程度高,an全可靠,操作简便。

  Product Range

  Rated thermal power: 4.2-29MW, rated water pressure: 0.7-1.25MPa

  Rated evaporation: 6-25t / h, rated water pressure: 1.0-2.5MPa


  SZL series assembly water pipe hot water boiler is a double boiler water pipe chain grate boilers. The boiler body has upper and lower two drums longitudinally arranged along the center of the boiler, the front part of the upper drum and the water-cooled wall tubes on both sides form a radiant heating surface of the furnace, and the tube bundle between the rear part of the upper drum and the lower drum tube convects and heats surface. Economizer arranged in the back of the boiler, the combustion of high temperature flue gas is absorbed in the furnace after a portion of the heat absorbed by the cooling chamber into the convection heating surface heat transfer by the economizer, the dust collector by the induced draft fan to the chimney Discharge into the atmosphere.

  Compact structure, small footprint, boiler room layout, infrastructure investment province;

  High degree of assembly, short installation cycle, low installation costs;

  The heating surface is fully arranged and reasonable, the boiler heats up, the pressure rises quickly, the output is sufficient, and the thermal efficiency is high;

  Grate into the warehouse warehouses, the wind breeze independent adjustable windlasses, grate stepless speed to adapt to coal wide, full combustion;

  Control cabinet fully equipped with automatic control and monitoring instruments, a high degree of automation, safe, reliable, easy to operate.
