  • YYL型 立式燃油(气)导热油炉YYL vertical fuel (gas) thermal oil furnace
名称:YYL型 立式燃油(气)导热油炉YYL vertical fuel (gas) thermal oil furnace
详细介绍

产品范围

  供热量:(300-1500)×104Kcal/h,设计压力:1.1MPa



  YYL(YYW)系列有机热载体炉为快装式强制循环燃油(气)锅炉。本系列锅炉本体受热面结构紧凑,受热面由内、中、外(或内、外)密排的圆盘管构成;内盘管为辐射受热面,中、外盘管与内盘管的外表面构成对流受热面。燃料在内盘管组成的燃烧室内燃烧放热,经辐射受热面吸收大部分热量后,高温烟气进入对流受热面进行换热,出锅炉后在空气预热器中加热锅炉燃烧所需的空气,再经除尘器由引风机将烟气送至烟囱排入大气

  安装方便灵活,只要将锅炉就位于其基础上即可。

  受热面采用密排圆盘管,受热面布置充足,降低管子表面热负荷,是导热油使用更an全。

  炉膛尺寸与燃烧火焰相匹配,采用了正压燃烧,辐射换热效率高。

  锅炉结构紧凑,大大节约了锅炉房的占地面积。

  大型锅炉尾部设置空气预热器,提高锅炉效率。


  Product Range

  Heat supply: (300-1500)×104Kcal/h, design pressure: 1.1MPa


  YYL (YYW) series of organic heat carrier furnace for fast-loading forced circulation fuel (gas) boiler. This series of boiler body heating surface compact structure, the heating surface by the inner, outer (or inner and outer) close-packed disk tube composition; inner coil radiation heating surface, the outer coil and the outer coil The surface constitutes convection heating surface. The fuel is combusted and radiated in the combustion chamber formed by the inner coil. After the radiant heating surface absorbs most of the heat, the high-temperature flue gas enters the convection and heating surface for heat exchange. After the boiler heats the air required for the boiler combustion in the air preheater , And then by the dust catcher by the induced draft fan to the chimney into the atmosphere

  Installation is extremely convenient and flexible, as long as the boiler is located on the basis of it.

  Heat surface with close-packed disk, heating surface layout sufficient to reduce the thermal load on the pipe surface, the use of thermal oil is more secure.

  Furnace size matches the combustion flame, positive pressure combustion is used, and radiation heat exchange efficiency is high.

  Boiler structure is compact, greatly saving the boiler room area.

  Air boilers are installed at the rear of large boilers to improve boiler efficiency.

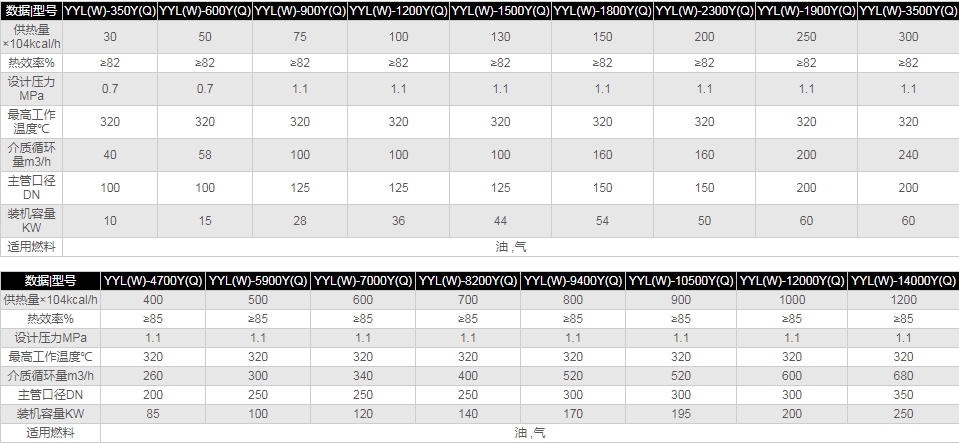

注:由于本公司产品不断改进,以上产品参数将不断更新,本页所列仅供参考。表列锅炉品种为本厂代表产品,如需其他型号参数锅炉可参阅有关图纸资料
